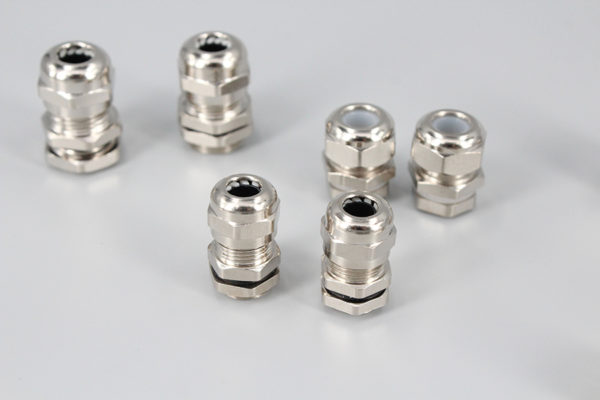

Metric thread metal brass or stainless steel material cable gland
Material:Brass or Stainless steel material,the sealing is NBR material,the clamp claw is nylon material.
IP degree:IP68
Thread: Metric
Working temperature:-40℃ to 100℃
Feature:Resistant to salt water,weak acid,alcohol,oil,grease,etc.High tension.
Specification
(if you can’t find your interested size,pls contact us,these only part of cable ties size.)
| Type | Cable diameter(mm) | Thread diameter AG(mm) | Thread length GL (mm) | Thread length (lengthen type) GL (mm) | Jointment length H(mm) | Wrench diameter(mm) |
| M8x1.25 | 2-4 | 8 | 5 | 7 | 16 | 11 |
| M10x1.5 | 3-6 | 10 | 5 | 7 | 16 | 12 |
| M12x1.5 | 3-6.5 | 12 | 7 | 10 | 19 | 14 |
| M14x1.5 | 4-8 | 14 | 7 | 10 | 19 | 118 |
| M16x1.5 | 4-8 | 16 | 8 | 10 | 20 | 18 |
| M18x1.5 | 5-10 | 18 | 8 | 10 | 21 | 20 |
| M20x1.5 | 6-12 | 20 | 8 | 15 | 22 | 22 |
| M22x1.5 | 10-14 | 22 | 8 | 15 | 23 | 24 |
| M24x1.5 | 10-14 | 24 | 9 | 15 | 25 | 24 |
| M25x1.5 | 10-14 | 25 | 9 | 15 | 25 | 24 |
| M25x1.5 | 13-18 | 25 | 9 | 15 | 27 | 30 |
| M27x1.5(2) | 13-18 | 27 | 9 | 15 | 27 | 30 |
| M28x1.5(2) | 13-18 | 28 | 9 | 15 | 27 | 30 |
| M30x1.5(2) | 13-18 | 30 | 9 | 15 | 29 | 30 |
| M32x1.5(2) | 15-22 | 32 | 10 | 15 | 29 | 35 |
| M33x1.5(2) | 15-22 | 33 | 10 | 15 | 29 | 35 |
| M36x1.5(2) | 18-25 | 36 | 10 | 15 | 31 | 40 |
| M37x1.5(2) | 18-25 | 37 | 10 | 15 | 31 | 40 |
| M40x1.5(2) | 18-25 | 40 | 11 | 15 | 31 | 40 |
| M40x1.5(2) | 22-30 | 40 | 11 | 15 | 35 | 45 |
| M42x1.5(2) | 22-30 | 42 | 11 | 15 | 35 | 45 |
| M47x1.5(2) | 25-33 | 47 | 11 | 15 | 37 | 50 |
| M48x1.5(2) | 25-33 | 48 | 11 | 15 | 37 | 50 |
| M50x1.5(2) | 32-38 | 50 | 12 | 15 | 37 | 57 |
| M54x1.5(2) | 32-38 | 54 | 12 | 15 | 38 | 57 |
| M56x1.5(2) | 32-38 | 56 | 12 | 15 | 38 | 57 |
| M60x1.5(2) | 37-44 | 60 | 13 | 15 | 38 | 65 |
| M63x1.5(2) | 37-44 | 63 | 13 | 15 | 38 | 65 |
| M64x1.5(2) | 37-44 | 64 | 13 | 15 | 38 | 65 |
| M72x2 | 42-52 | 72 | 15 | 20 | 42 | 77 |
| M75x2 | 42-52 | 75 | 15 | 20 | 42 | 77 |
| M80x2 | 62-55 | 80 | 15 | 20 | 45 | 90 |
| M88x2 | 65-70 | 88 | 15 | 20 | 45 | 94 |
| M100x2 | 78-84 | 100 | 15 | 20 | 45 | 110 |
Details of product
