MG Series full different size grey white RAL7035 and black nylon waterproof cable glands
Material:Nylon PA66(Flammability UL94V-2)for A,C,E,F parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts(accept to customize resist high temperature rubber,resist strong acid/alkali,etc)
IP degree:IP68
Working temperature:-40℃ to 100℃
Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.
Colours:Black,Grey,other color available upon request.
Specification
Special specification can be customized.

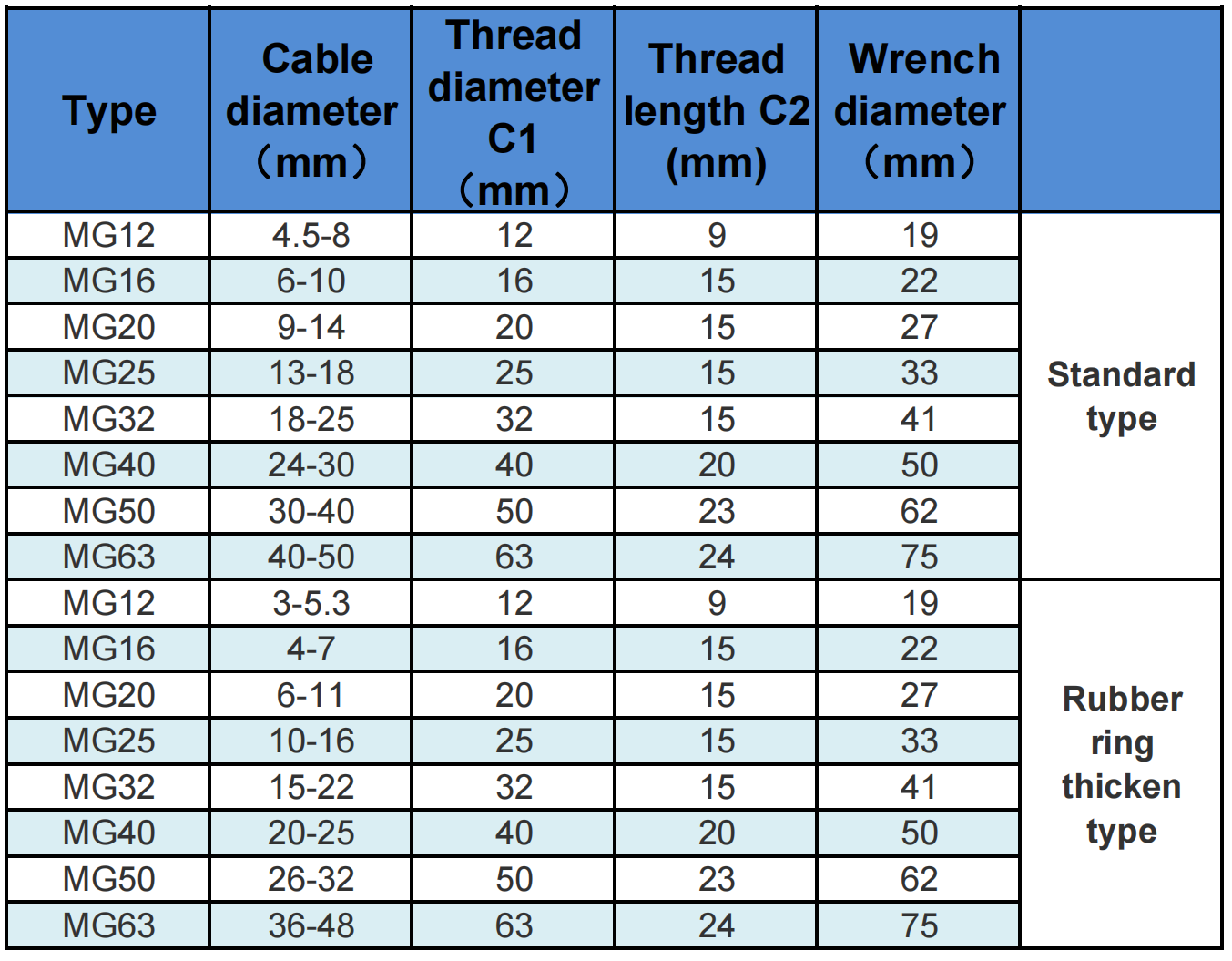

| Type | Cable diameter (mm) | Thread diameter C1(mm) | Thread length C2 (mm) | Wrench diameter (mm) | |
| MG12 | 4.5-8 | 12 | 9 | 19 | Standard type |
| MG16 | 6-10 | 16 | 15 | 22 | |
| MG20 | 9-14 | 20 | 15 | 27 | |
| MG25 | 13-18 | 25 | 15 | 33 | |
| MG32 | 18-25 | 32 | 15 | 41 | |
| MG40 | 24-30 | 40 | 20 | 50 | |
| MG50 | 30-40 | 50 | 23 | 62 | |
| MG63 | 40-50 | 63 | 24 | 75 | |
| MG12 | 3-5.3 | 12 | 9 | 19 | Rubber ring thicken type |
| MG16 | 4-7 | 16 | 15 | 22 | |
| MG20 | 6-11 | 20 | 15 | 27 | |
| MG25 | 10-16 | 25 | 15 | 33 | |
| MG32 | 15-22 | 32 | 15 | 41 | |
| MG40 | 20-25 | 40 | 20 | 50 | |
| MG50 | 26-32 | 50 | 23 | 62 | |
| MG63 | 36-48 | 63 | 24 | 75 |

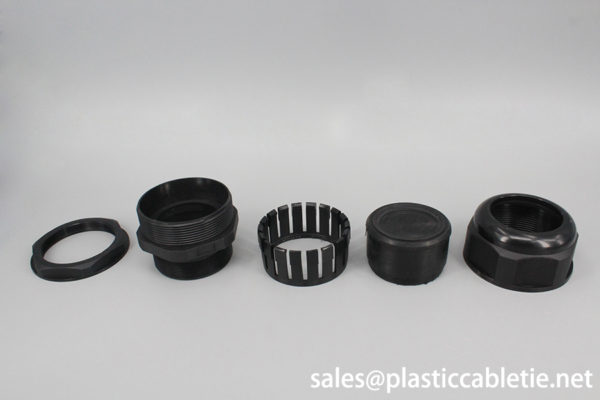

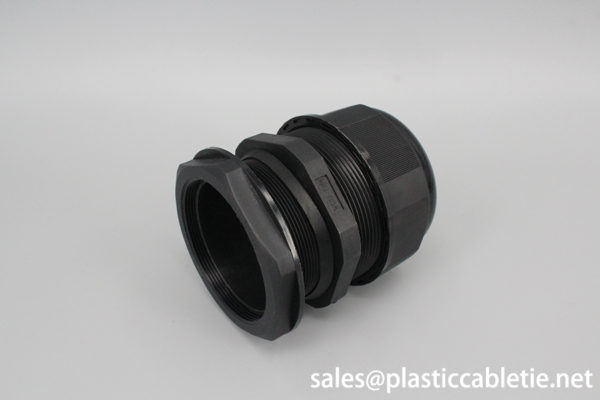

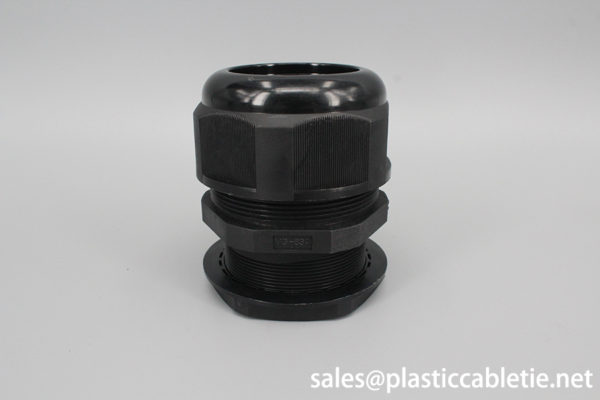

Details of product
