PG thread metal brass or stainless steel material IP68 waterproof cable gland

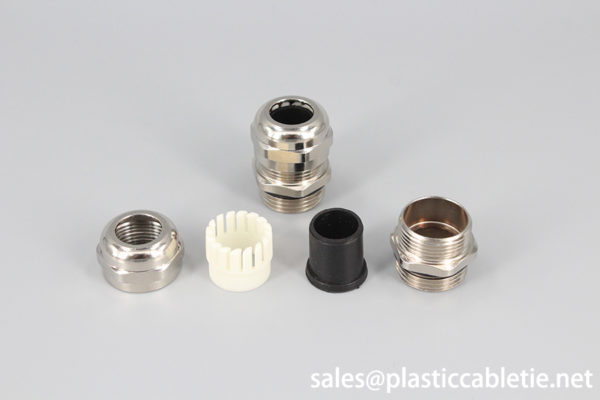

Material:Brass or Stainless steel material,the sealing is NBR material,the clamp claw is nylon material.
IP degree:IP68
Thread: PG
Working temperature:-40℃ to 100℃
Feature:Resistant to salt water,weak acid,alcohol,oil,grease,etc.High tension.
Specification
| Type | Cable diameter(mm) | Thread diameter AG(mm) | Thread length GL (mm) | Thread length(lengthen type) GL (mm) | Jointment length H(mm) | Wrench diameter(mm) |
|---|---|---|---|---|---|---|
| PG7 | 3-6.5 | 12.5 | 7 | 10 | 19 | 14 |
| PG7 | 2-5 | 12.5 | 7 | 10 | 19 | 14 |
| PG9 | 4-8 | 15.2 | 8 | 10 | 20 | 17 |
| PG9 | 2-6 | 15.2 | 8 | 10 | 20 | 17 |
| PG11 | 5-10 | 18.6 | 8 | 10 | 21 | 20 |
| PG11 | 3-7 | 18.6 | 8 | 10 | 21 | 20 |
| PG13.5 | 6-11 | 20.4 | 8 | 15 | 22 | 22 |
| PG13.5 | 5-9 | 20.4 | 8 | 15 | 22 | 22 |
| PG16 | 10-13 | 22.5 | 9 | 15 | 23 | 24 |
| PG16 | 7-12 | 22.5 | 9 | 15 | 23 | 24 |
| PG19 | 12-15 | 25 | 9 | 15 | 25 | 24 |
| PG19 | 10-13 | 25 | 9 | 15 | 25 | 24 |
| PG21 | 13-18 | 28.3 | 9 | 15 | 27 | 30 |
| PG21 | 45185 | 28.3 | 9 | 15 | 27 | 30 |
| PG25 | 16-21 | 32 | 10 | 15 | 29 | 35 |
| PG25 | 13-18 | 32 | 10 | 15 | 29 | 35 |
| PG29 | 18-25 | 37 | 11 | 15 | 31 | 40 |
| PG29 | 13-20 | 37 | 11 | 15 | 31 | 40 |
| PG36 | 22-32 | 47 | 12 | 15 | 37 | 50 |
| PG36 | 20-26 | 47 | 12 | 15 | 37 | 50 |
| PG42 | 32-38 | 54 | 13 | 15 | 38 | 57 |
| PG42 | 25-31 | 54 | 13 | 15 | 38 | 57 |
| PG48 | 37-44 | 59.3 | 14 | 15 | 38 | 65 |
| PG48 | 29-35 | 59.3 | 14 | 15 | 38 | 65 |
| PG63 | 42-50 | 72 | 15 | 20 | 42 | 77 |
| PG63 | 32-40 | 72 | 15 | 20 | 42 | 77 |
(if you can’t find your interested size,pls contact us,these only part of cable ties size.)

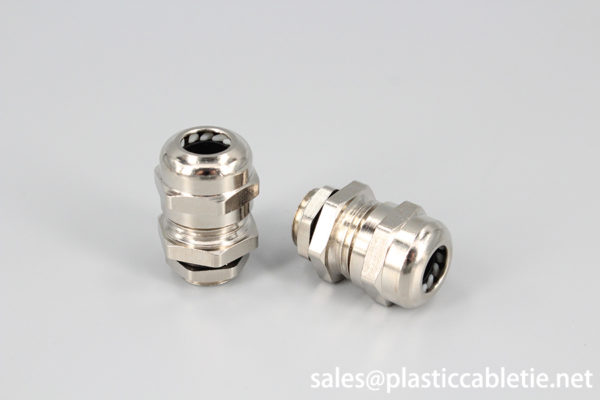

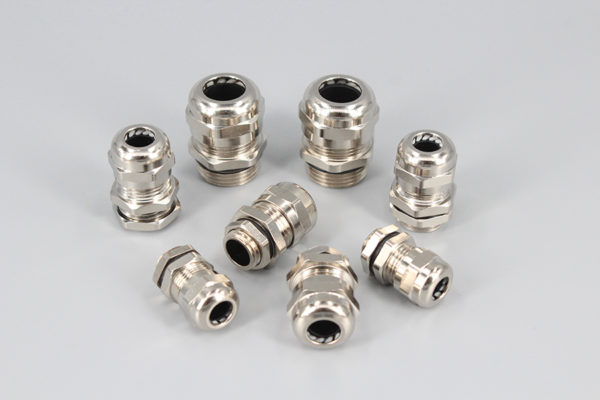

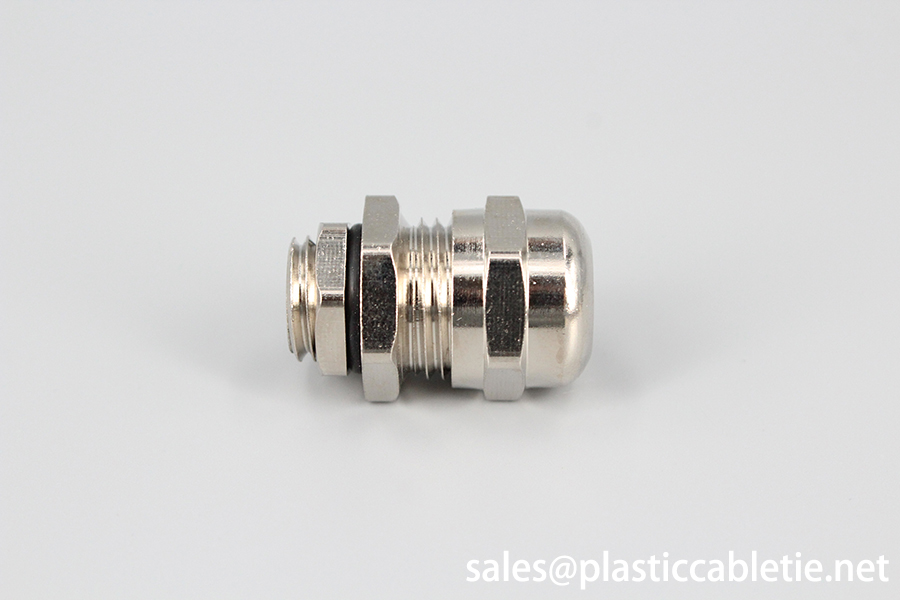

Details of product
