Professional Factory Cheap Wholesale low price high quality PE material spiral wrapping bands with good price
Material:PE
Usage: fix one end with safety belt first,then circle the wires clockwise to make them tight.
Application:a protection wear for electric wires,and make them insulation and look nice.
Colours:Black,White,other color available upon request.
Specification
Remark:Special specification can be customized.
| Type | Inner diameter D(mm) | Outside diameter D1(mm) | Thread pitch W(mm) | Wrapping range (mmφ) |
| DM-4 | 2.5 | 4 | 4.5 | 2-20 |
| DM-6 | 4.0 | 6 | 7.0 | 4-50 |
| DM-8 | 6.0 | 8 | 10.8 | 6-60 |
| DM-10 | 7.5 | 10 | 11.4 | 7.5-60 |
| DM-12 | 9.0 | 12 | 13.9 | 9-65 |
| DM-14 | 11.0 | 14 | 14.5 | 12.5-60 |
| DM-15 | 12.0 | 15 | 15.0 | 12-75 |
| DM-16 | 13.0 | 16 | 16.0 | 13-85 |
| DM-18 | 14.0 | 18 | 1.0 | 14-90 |
| DM-19 | 15.0 | 19 | 18.2 | 15-100 |
| DM-20 | 17.0 | 20 | 18.5 | 16-105 |
| DM-24 | 20.0 | 24 | 19.6 | 20-130 |
| DM-25 | 21.0 | 25 | 20.0 | 22-135 |

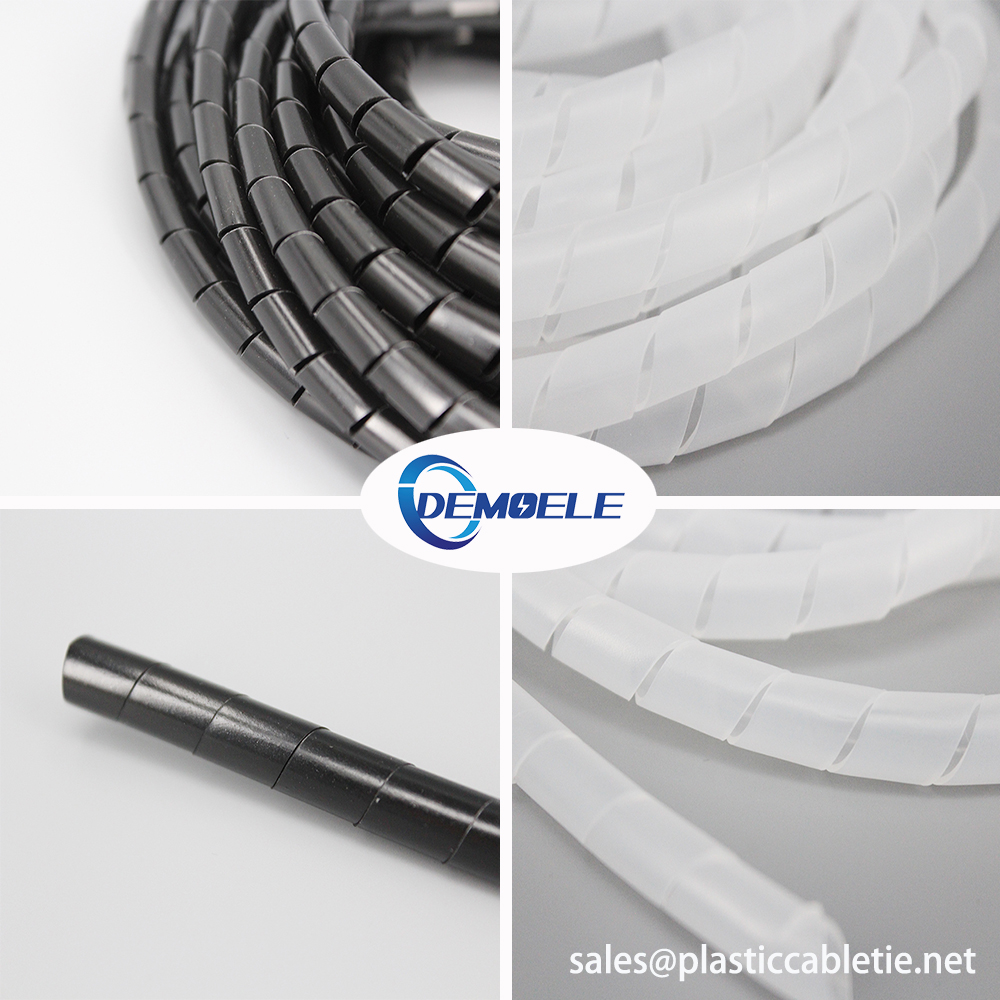

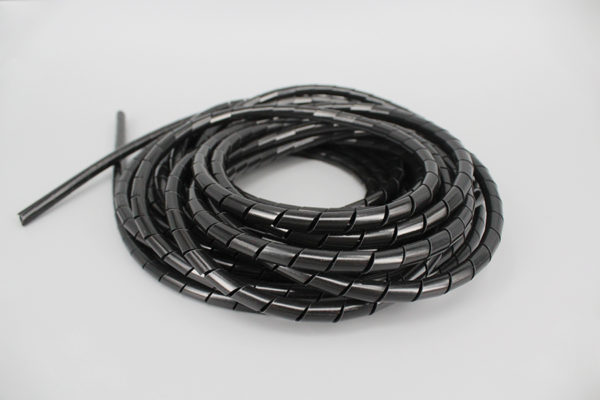

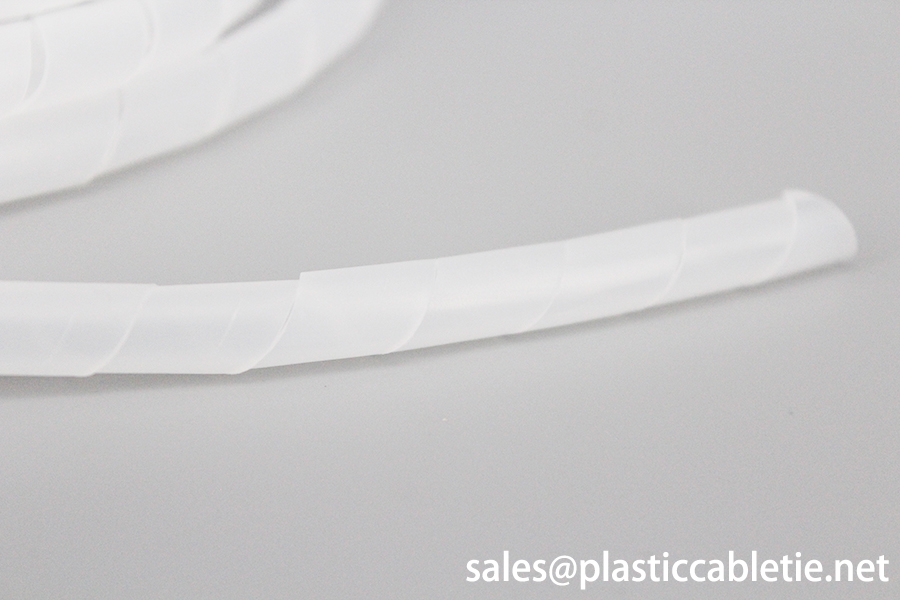

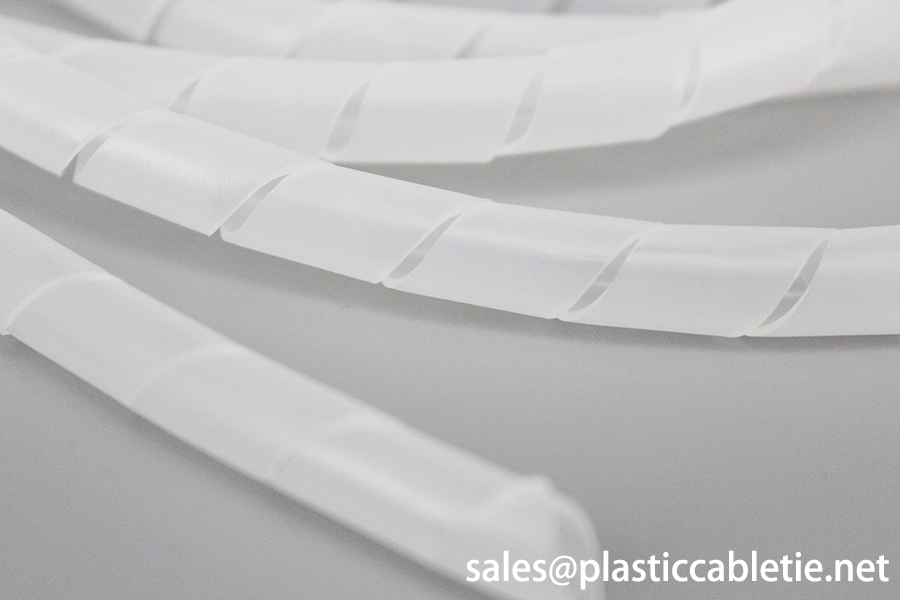

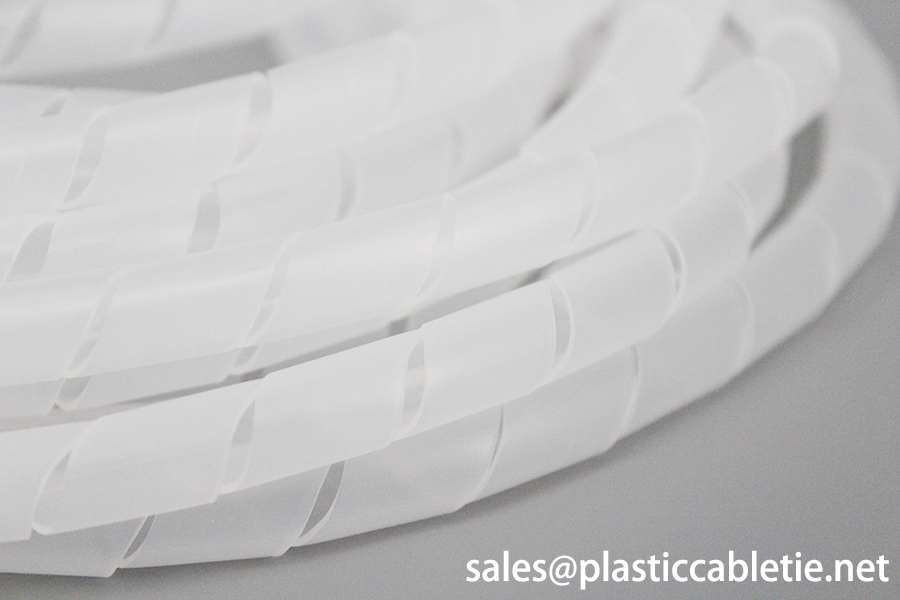

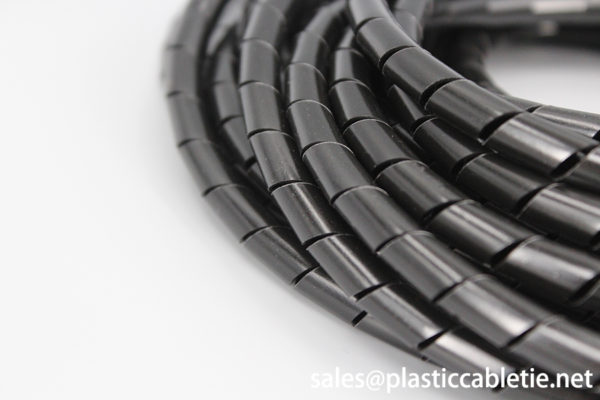

Details of Product
